Factory ISDB-T Decodificador De TV Digital TV Receiver Decoder Receptor HD 1080P Satellite TV Receiver ISDB-T Chile Peru Brazil
Factory ISDB-T Decodificador De TV Digital TV Receiver Decoder Receptor HD 1080P Satellite TV Receiver ISDB-T Chile Peru Brazil - Imagem 2
Factory ISDB-T Decodificador De TV Digital TV Receiver Decoder Receptor HD 1080P Satellite TV Receiver ISDB-T Chile Peru Brazil - Imagem 3
Factory ISDB-T Decodificador De TV Digital TV Receiver Decoder Receptor HD 1080P Satellite TV Receiver ISDB-T Chile Peru Brazil - Imagem 4
Factory ISDB-T Decodificador De TV Digital TV Receiver Decoder Receptor HD 1080P Satellite TV Receiver ISDB-T Chile Peru Brazil - Imagem 5
Factory ISDB-T Decodificador De TV Digital TV Receiver Decoder Receptor HD 1080P Satellite TV Receiver ISDB-T Chile Peru Brazil - Imagem 6
Factory ISDB-T Decodificador De TV Digital TV Receiver Decoder Receptor HD 1080P Satellite TV Receiver ISDB-T Chile Peru Brazil - Imagem 7
Factory ISDB-T Decodificador De TV Digital TV Receiver Decoder Receptor HD 1080P Satellite TV Receiver ISDB-T Chile Peru Brazil - Imagem 8

Factory ISDB-T Decodificador De TV Digital TV Receiver Decoder Receptor HD 1080P Satellite TV Receiver ISDB-T Chile Peru Brazil

R$ 106,80 – R$ 146,98

SPECIFICATIONS Brand Name: lemonwater High Definition: Yes Hign-concerned Chemical: None Model Number: ISDB-T Origin: Mainland China 1080P ISDB-T Set Top Box HD Terrestrial Digital Video Broadcasting TV Receiver Note: Before you buy, pls check below picture to see how to install. It need both tv and tv towers/dish, or cannot see channels. Hardware: CPU: MSTAR-MSD7805…

SKU: d0n61rh2ohtg00ff3tt0
Category:

Descrição

SPECIFICATIONS


Brand Name: lemonwater

High Definition: Yes

Hign-concerned Chemical: None

Model Number: ISDB-T

Origin: Mainland China


1080P ISDB-T Set Top Box HD Terrestrial Digital Video Broadcasting TV Receiver

Note: Before you buy, pls check below picture to see how to install. It need both tv and tv towers/dish, or cannot see channels.

Hardware:

CPU: MSTAR-MSD7805 (128 pin) MIPS 34Kf@600MHz
Memory: 32X16Mbit DDR2: Frequency1066
Flash: 32M bytes
Demodulator Type: ISDB SOC Chip Set
TUNER: Rafael R836

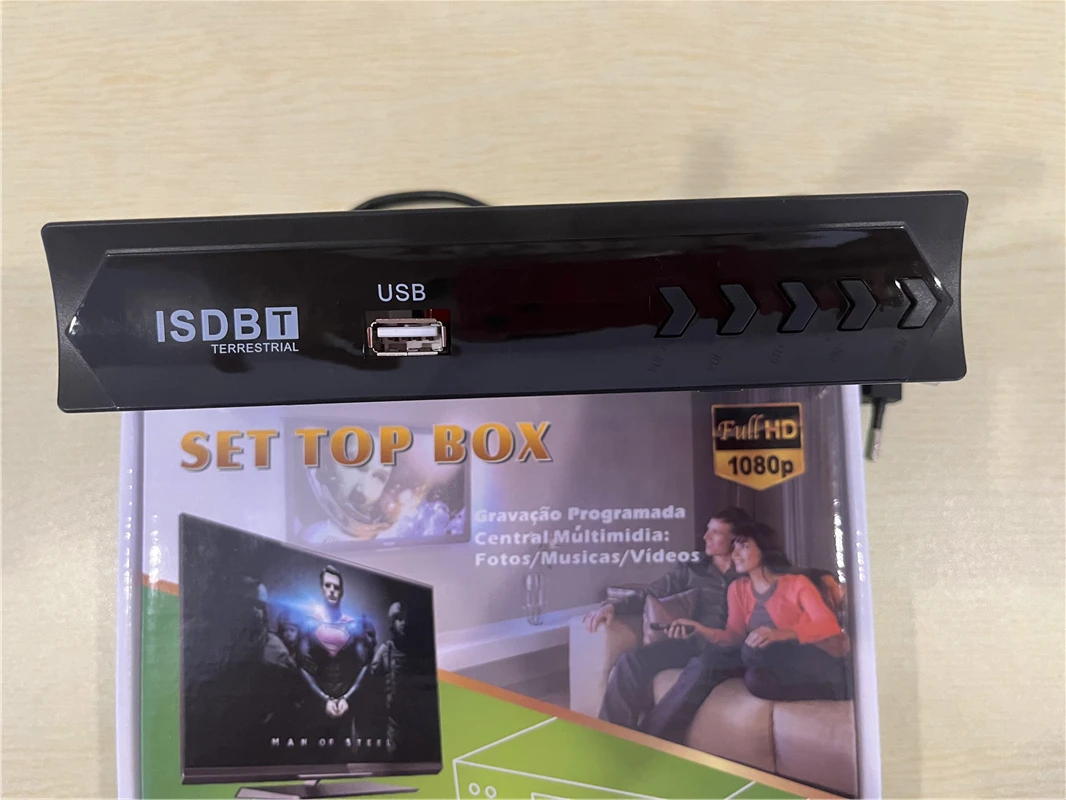

Front Panel: USB 2.0 Embedded One Host,
4-digit LED display on front panel
red LED Standby, green LED Lock
Panel KEY, POWER, CH+ , CH-

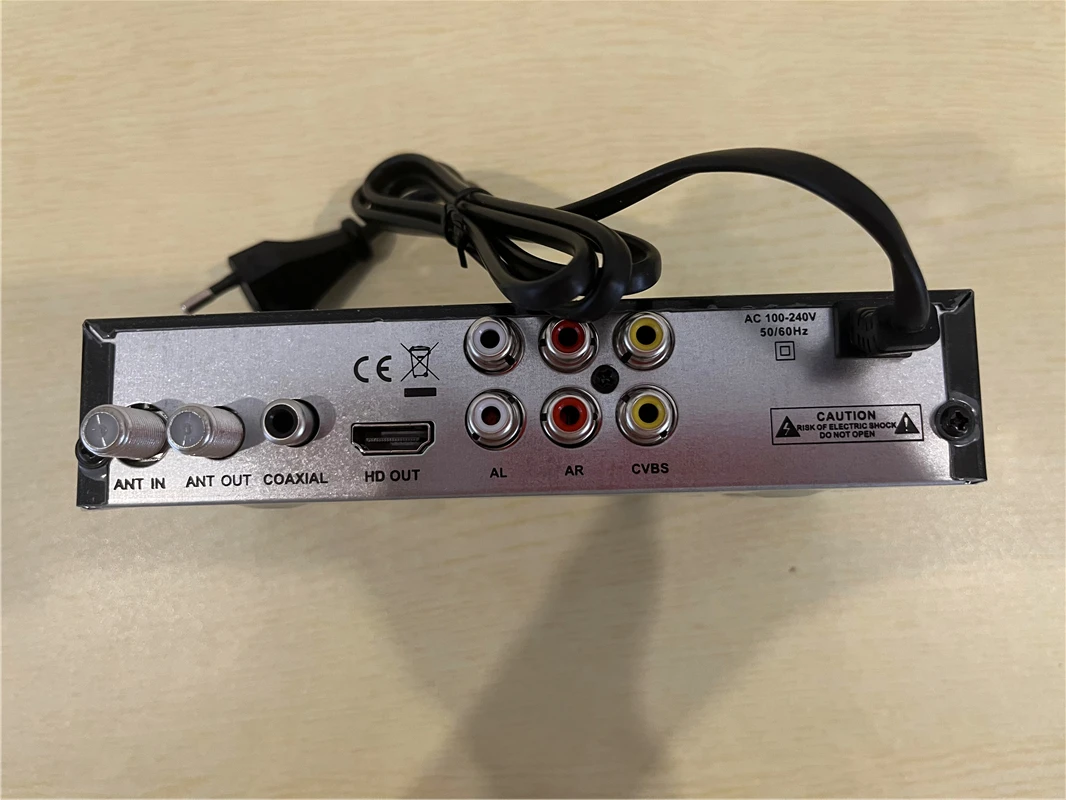

Rear Panel: Tuner RF input connector EC-type IEC169-2 Female
Tuner RF Loop through connector IEC-type IEC169-24 Male
HDMI V1.3/V1.4
RCA CVBS AL AR Connector x1
Ypbpr RCAx1
Coaxial x1
Power AC100~240V 50Hz/60Hz
Demodulation:
Terrisal Receiver Standard: ISDB-T broadcast (1, 3, 13 segment)
Input RF Frequency: VHF: 177.143~213.143 MHz: UHF 473.143~803.143MHz.
Bandwidth: 6MHz
Demodulatio: QPSK / 16QAM / 64QAM/QPSK or DQPSK
FEC: 1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic
Guard Interval : 1/41/81/161/32
FFT Mode: 2K/ 8K/32K
Input level: -83 – -5dBm
Software Features:
•used for any ISDB-T countries like Brazil, Peru, Argentina, Chile, Venezuela, Philippines Ecuador
•Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX compliant
•Support 3D interface
•Support teletext /subtitle /muti-language
•Supported 7-Day EPG function, VBI Teletext
•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Scr
•USB 2.0 for PVR, TIMESHIFT, software upgrade and media files playback
•Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P
Decoder:
Video Decoder:
Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818
MPEG-4 Simple/Main/Advanced Profile@ LEVEL3 (10Mbps)
MPEG-2 Main Profile# Main Level (15Mbps)
H.264 MP#L3 (10Mbps).H.264 HP L4.1(25Mbps)
Audio Decoder:
MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA
E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-channel decoding
Powerful Multimedia Features
Media Codec: avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc
Audio Codec: WMA, MP3, AAC (.wma,.mp3,m4a)
Photo Codec: JPEG, BMP, PNG
Pictures:

Informação adicional

Color

With Wifi, No Wifi
Plug Type

EU Plug
